Automatic Safety And Environmental Layer Broiler Poultry Feed Plant
Turnkey projects for Customers ! Supply 1-30t/h feed plant ! From design to Installation.

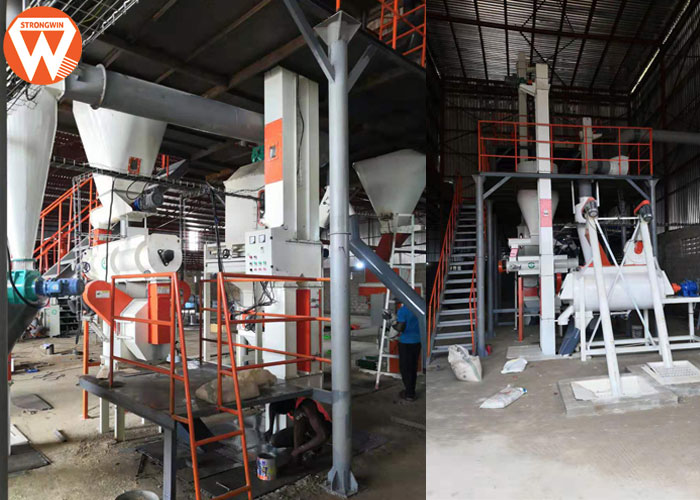

1. Introduction of Layer Broiler Poultry Feed Plant
Automatic Poultry Feed Plant include feed grinder, feed mixer, feed pellet machine,cooling machine, packing system. it can make kinds of poultry feed pellet. like chicken, bird, duck feed, cattle,cow,sheep. etc.
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
2. Features of Layer Broiler Poultry Feed Plant
1. Design for production line flow and equipment layout freely according to the site.
2. Supply the foundation drawing of equipment and drawing of parts made by buyer.
3. Supply the technical parameters of peripheral equipment.
4. During the operation, we can offer the technology service freely if the user needs to adjust the layout and application.
3. Technical Parameters of Layer Broiler Poultry Feed Plant(According Customers need)
| No. | Product | type | Power(KW) |
| 1.Raw materials receiving and crushing and mixing system |
| 101 | Screw Conveyor | TSLL16 | 2.2 |
| 102 | Hammer Crusher | SFPZ56*20 | 15.00 |
| 103 | Ribbon Mixer | SHW1.0 | 7.5 |
| 2.Pelleting system |
| 201 | Bucket Elevator | TDTG36/18 | 2.2 |
| 204 | Pellet Machine(include control box) | SZLH25 | 11*2+2.2+0.75 |
| 3.Cooling system |
| 303 | Airlock | GFY250 | 0.75 |
| 304 | Counter Flow Cooler | SKLN11×11 | 0.75 |
| 305 | Air Blower | 4-72-4A | 5.50 |
| 308 | Pellet crusher | SSLG15*80 | 5.5 |
| 309 | Manual Three-way | SD20*20 | |
| 4.Auxiliary System |
| 402 | Rotary Screener | SFJH80*2d | 1.5 |
| 5.Auxiliary System |
| 601 | Boiler | | |
