Dry Type Floating Sinking Fish Food Extruder Machine

Product Categories
Henan Strongwin Machinery Equipment Co., Ltd.
Contact Now

Dry Type Floating Sinking Fish Food Extruder Machine

  • 1
  • 2
  • 3

Brand Name : Strongwin

Model Number : DGP60C extruder plant

Certification : CE,ISO,SGS

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000sets per year

Delivery Time : 7-10 working days

Packaging Details : Wooden Case

Name : Floating Fish Food Pellet Machine Shrimp Feed Extruder Plant

Main machine : Crusher, mixer,extruder,dryer,spary, cooler,packing machine

Capacity : 100-150kg/h

Power : 55KW

Application : Fish shrimp feed, pet food

Service : From design to installation

Contact Now

Dry Type Rwanda Floating And Sinking Fish Food Extruder Machine Plant

Description of Fish Food Extruder Machine Plant

Manufacturers are keeping exploring more advanced fish feed pellet machine and production technology to satisfy customers'increasing demands for high-quality and nutritionally-balanced sinking & floating fish feed. The early fish feed equipment cannot satisfy current production needs any more, so Fish Feed Machinery has worked out low-energy-consumption fish feed production plant and fish feed pellet machines with multiple production models.

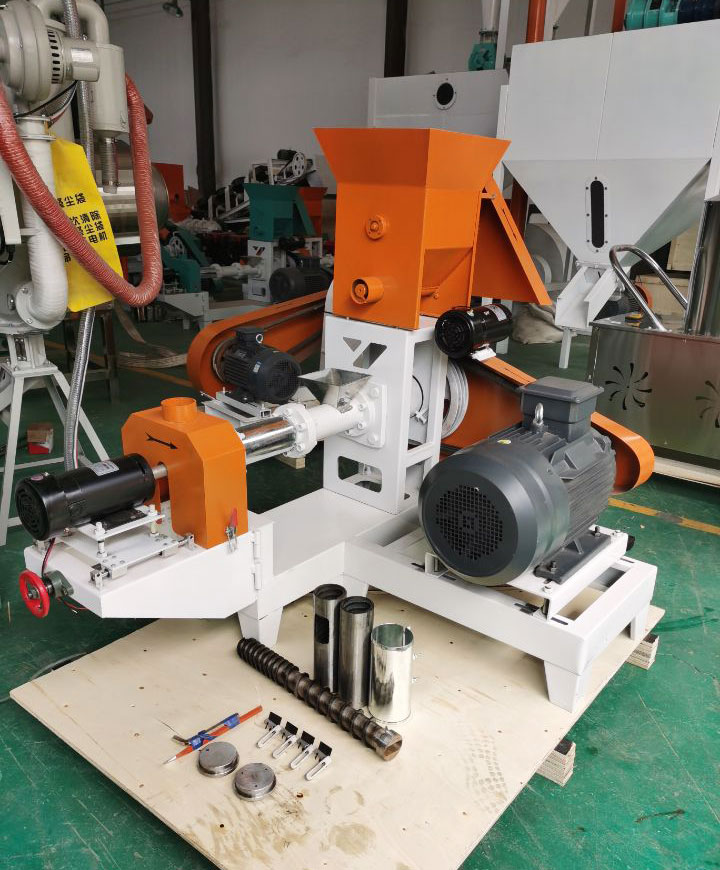

Dry Type Floating Sinking Fish Food Extruder Machine

The whole production line including Crusher-Mixer-Fish feed extruder machine-Dryer-Cooler-Oil spray machine-Packing machine.
This line is widely used for process all kinds of grains into high-grade aquatic floating or sinking feed pellet for fish,catfish,shrimps,crab.
It also can make pet feed for dog,cat etc with different shape and chicken feed.

Dry Type Floating Sinking Fish Food Extruder Machine

Technical Parameters of Fish Food Extruder Machine Plant

No. Name Capacity(kg/h) Qty (set) Power(KW)
1 Hammer mill 200 1 5.5
2 Dusting collection and storage bin Capacity of storage bin 0.5-1.0m³ 1 0.75*2
3 Mixer 25kg/batch, need 10-15 minutes per batch 1 4
4 Extruder (send you another one more set spare parts) 120-150 1 Main Power: 15
Cutting Power: 0.4
Feeding Power: 0.4
5 Pneumatic conveying equipment 200 1 Fan power: 2.2kw
Discharge Power: 0.75kw
6 Mesh belt dryer 150-200 1 Heating power: 15-18kw
Mesh belt power: 1.5kw
Fan power: 0.37kw
7 Spray machine 25kg/batch, need 5 minutes per batch 1 Main power: 0.75kw
Oil pump power: 0.37kw
8 Control system 1
9 Electronic scales
10 Sewing machine

Dry Type Floating Sinking Fish Food Extruder Machine

Pellets application

Dry Type Floating Sinking Fish Food Extruder Machine

Our factory supply dry and wet type fish feed extruder plant
Provide users with economical and rational design
Professional installation and training service

Welcome contact us !
